EM3(straight flute、twisted flute)

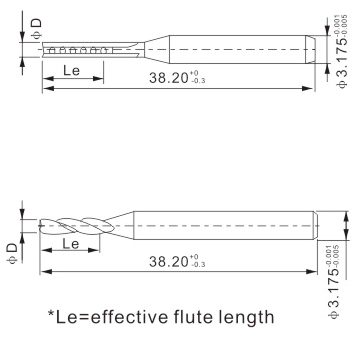

drawing
description
Features

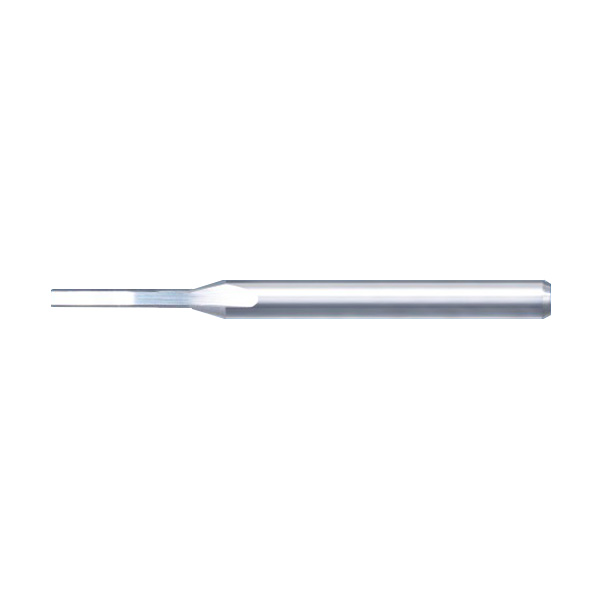

Solid tungsten carbide endmill series,lnclude straight flute with microchip breaker and 3 twisted cutting no chipbreaker.Suitable for contour finishing non-ferrous metallic boards.
Applications

slitting precision composite board,non-ferrous metallic bpards.

Applicable end cut:S type、F type.

Technical parameter

φD mm

Norminal FL mm

0.80

3.0

0.90

1.00

4.5

1.10

1.20

6.0

1.30

1.40

1.50

7.5

1.60

1.70

1.80

1.90

2.00

9.0

2.10

2.20

2.30

2.40

2.50

2.60

2.70

2.80

2.90

3.00

9.5

3.175

*Special sizes available upon request.
