EM2(straight flute、twisted flute)

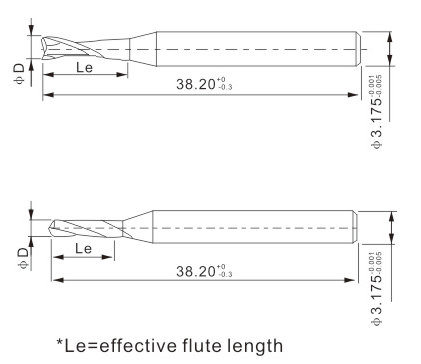

drawing
description
Features

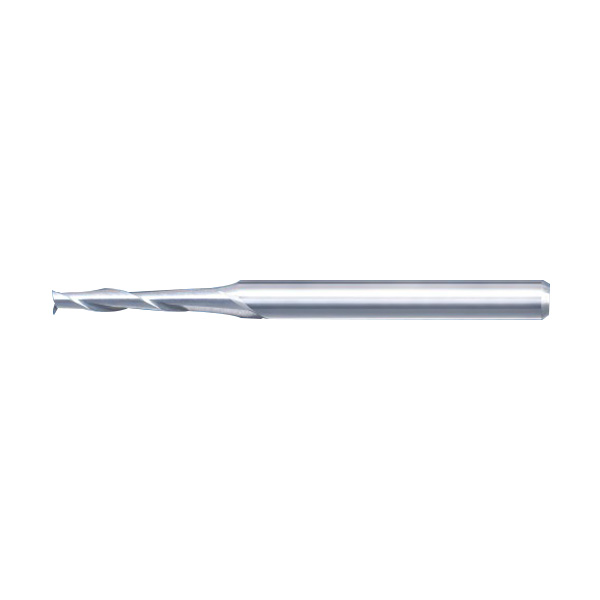

Solid tungsten carbide endmill series EM2 with 2 twisted cutting and 2 large chip pocket.Suitable for high-precision soft material board machining and slitting.
Applications

Slitting precision composite board,spot facing milling,etc.

Swarf draft:L、R

Applicable and cut:S type、F type、D type.

Technical parameter

φD mm

Norminal FL mm

0.80

3.0

1.00

4.5

1.20

6.0

1.40

1.50

7.5

1.60

1.70

1.80

1.90

2.00

9.0

2.20

2.40

2.50

2.60

2.80

3.00

9.5

3.175

*Special sizes available upon request.
