Product

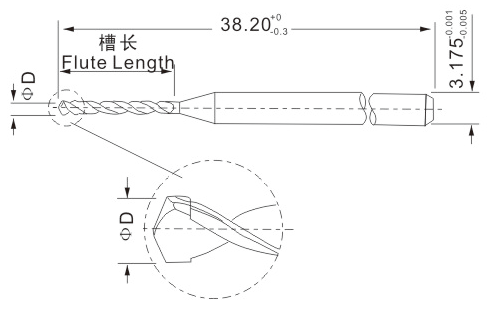

drawing

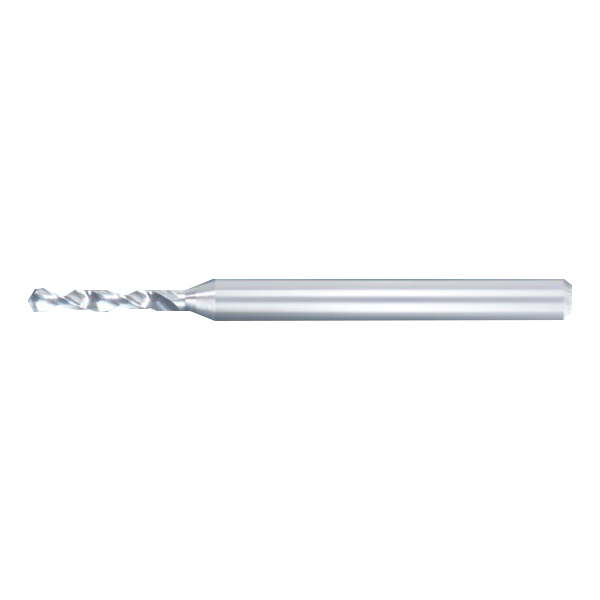

descriptionSolid tungsten carbid under cut type drill series UC,Features a spade shape and outstanding from other competitors by the following charateristics:
Special designde diamter-cutting length ratio,thus minimized flection of the drill.
The margins are maintained only over a short length while the rest is reliefground,thus considerably reduces the friction,hence with less heat build-up and smear.
The transition from OD to the relief-ground section has been carefully made,thus prevent wall damage during the rapid return stroke.
|
φD mm |
Flute Length |
|
0.25 |
4.0 |
|
0.30 |
5.5 |
|
0.35 |
6.5 |
|
0.40 |
7.0 |
|
0.45 |
7.0 |
|
0.50 |
8.5 |
|
0.55 |
8.5 |
|
0.60 |
8.5 |
|
0.65 |
8.5 |
|
0.70 |
8.5 |
|
0.75 |
8.5 |
|
0.80 |
8.5 |
|
0.85 |
8.5 |
|
0.90 |
8.5 |
|
0.85 |
8.5 |
|
1.00 |
8.5 |
|
1.05 |
8.5 |
|
1.10 |
8.5 |
|
1.15 |
8.5 |
|
1.20 |
8.5 |
