SPT-SF

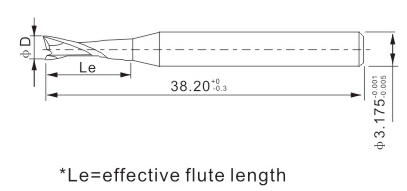

drawing
description
Features

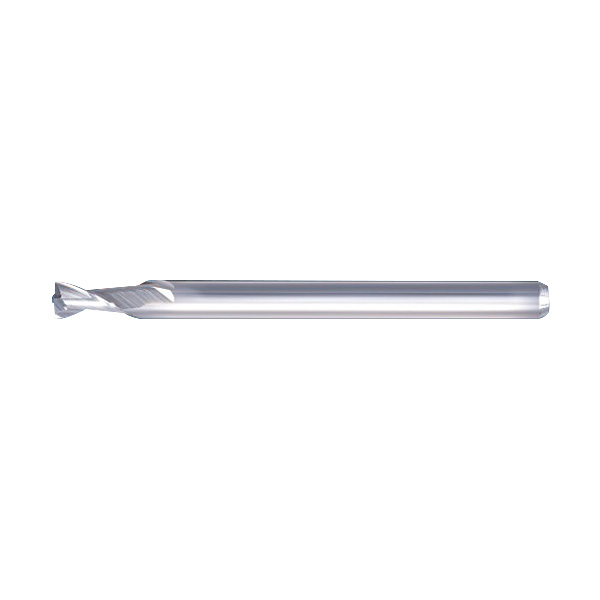

Solid tungsten carbide spotfacer series SPT-SF with 2 twisted cutting and 1 large chip pocket.Sultable for high-preci-sion Aluminium base cutting.
Applications

Slitting precision composite board,spot facing milling,etc.

Swarf draft：R

Applicable end cut : F type

Technical parameter

φD mm

Norminal FL mm

0.80

3.0

1.00

4.5

1.20

5.0

1.40

1.50

1.60

1.70

1.80

1.90

2.00

2.20

2.40

2.50

2.60

2.80

3.00

3.175

*Special sizes available upon request.
