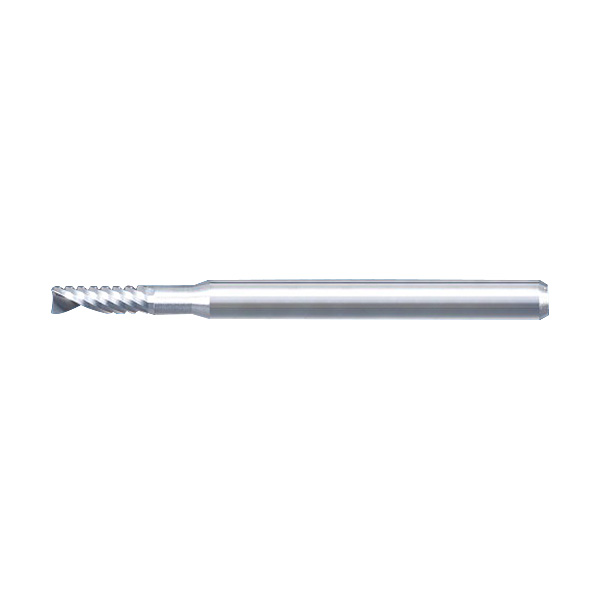

EM1(straight flute、twisted flute)

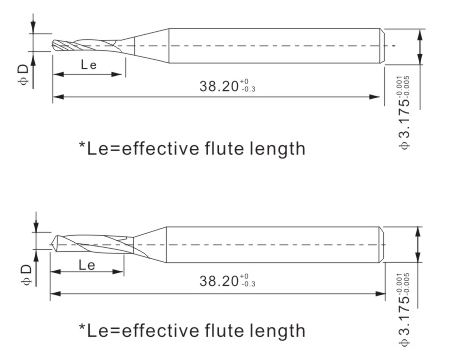

drawing
description
Features
Single-flute endmill with large chip pocket.Suitable for machining soft material boards and Aluminium base.
Applications
Applicable end cut :S type、F type、D type.
Technical parameter



φD mm

Norminal FL mm

0.80

5.0

0.90

1.00

6.0

1.10

1.20

7.0

1.30

1.40

1.50

8.0

1.60

1.70

1.80

1.90

2.00

10.0

2.10

2.20

2.30

2.40

2.50

2.60

2.70

2.80

2.90

3.00

12.0

3.175

 *Special sizes available upon request.
