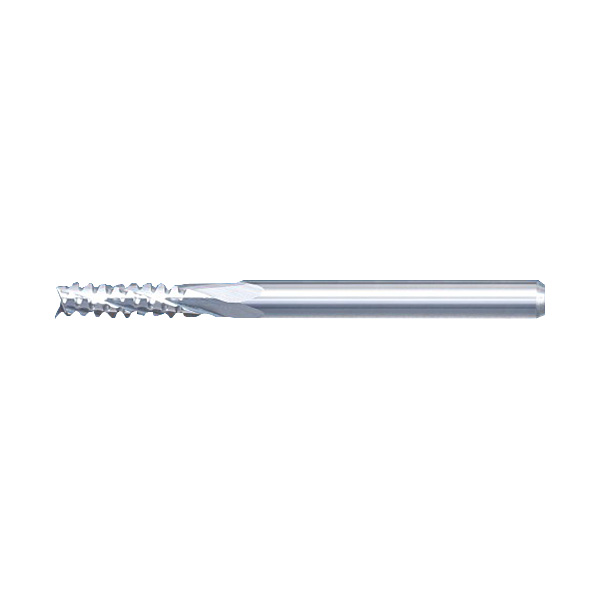

RTC-NF (Right,Left)

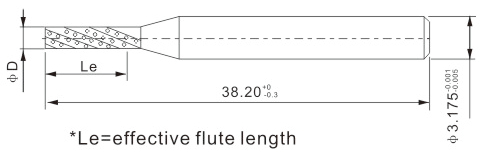

drawing
description
Features

Solid tungsten carbide router series RTC with chipbreaker style.Design features several swarf flutes with small chipbreakers,helix angle 20 degress,which yields large swarfromm and optimun swarf draft,reasulting a longer tool life,high dimensional stablibity,and excellent finish of milled surface.

Applications

Widely used for routing paper based board and CEM-3,Especially recommended for flash routing of external and internal contours of High-Tg material.Swarf draft:L、R

Applicable end cut:S type、F type、D type

Technical parameter

φD mm

Norminal FL mm

0.80

5.0

0.90

1.00

6.0

1.10

1.20

1.30

1.40

1.50

8.5

1.60

1.70

1.80

1.90

2.00

2.10

2.20

10.5

2.30

2.40

2.50

2.60

2.70

2.80

2.90

3.00

12.5

3.175

*Special sizes available upon request.
