RTD-HF(Right,Left)

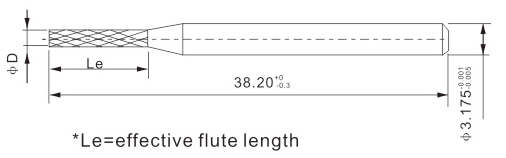

drawing

description

Features

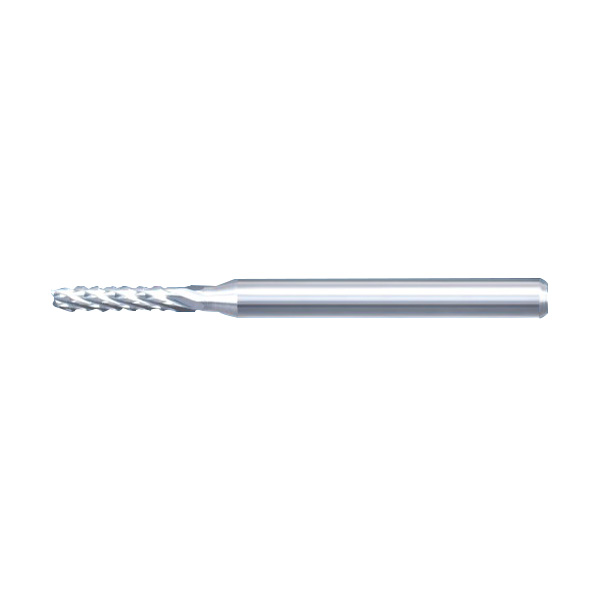

Solid tungsten carbide touter series RTD-HF with diamond-patterned cutting teeth. Coarse cut, helix 20 degress.Design features a high-feed souting due to its stronger cutting teeth and bigger swarf-room.

High Feed

Applications

General PCB routing with a higher feed.

Swarf draft:L、R

Applicable end cut: S type,F type,D type

Technical parameter

φD mm	Norminal FL mm
0.80	5.0
0.90	5.0
1.00	6.0
1.10
1.20
1.30
1.40
1.50	8.5
1.60
1.70
1.80
1.90
2.00
2.10
2.20	10.5
2.30
2.40
2.50
2.60
2.70
2.80
2.90
3.00	12.5
3.175	12.5

*Special sizes available upon request.
