Product

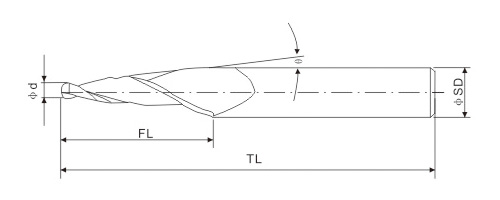

drawing
specification
| Order NO. | Diameter | Shank Diameter | Length of cut | Overall length | TaperAngle on Side | |||
|
SET01 SET02 SET03 SET04 SET05 |
2020 | 3020 | 4020 | 2 | 4 | 6 | 50 | 1°~5° |
| 2030 | 3030 | 4030 | 3 | 6 | 10 | 50 | 1°~5° | |
| 2040 | 3040 | 4040 | 4 | 6 | 15 | 50 | 1°~5° | |
| 2050 | 3050 | 4050 | 5 | 6 | 20 | 50 | 1°~5° | |
| 2060 | 3060 | 4060 | 6 | 8 | 20 | 60 | 1°~5° | |
| 2080 | 3080 | 4080 | 8 | 10 | 25 | 75 | 1°~5° | |
| 2100 | 3100 | 4100 | 10 | 12 | 30 | 75 | 1°~5° | |
*Special Size available upon request
