RTD-NF (Right,Left)

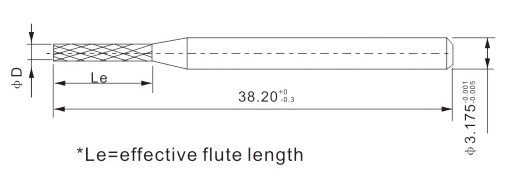

drawing
description
Features

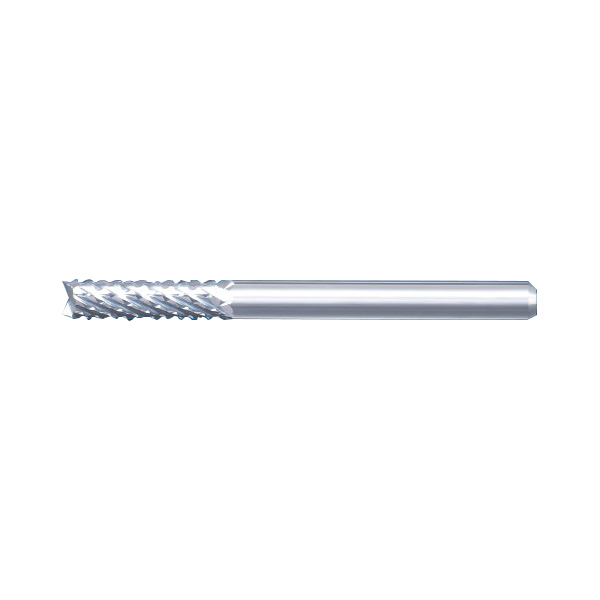

Solid tungsten carbide router series RTD-NF with dia-mond-patterned cutting teeth.Fine cut, helix 30 degrees. Design features a long-life and a good working surface finish.
Noraml Feed
Applications
General PCB routing.
Swarf draft:L,R
Applicable end cut :S type,F type,D type
Technical parameter

φD mm

Norminal FL mm

0.80

5.0

0.90

1.00

6.0

1.10

1.20

1.30

1.40

1.50

8.5

1.60

1.70

1.80

1.90

2.00

10.5

2.10

2.20

2.30

2.40

2.50

2.60

2.70

2.80

2.90

3.00

12.5

3.175

*Special sizes available upon request.
