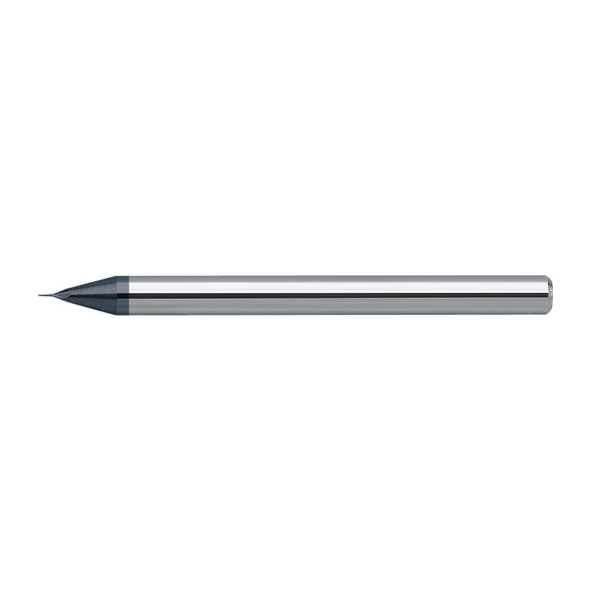

Solid Carbide Micro Diameter End Mills (TB)

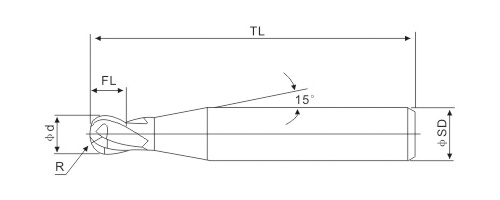

drawing
specification

Order NO. Diameter R Shank Diameter Length of cut Overall length
MTB01

2002

0.2 0.10 3(4)(6) 0.5 38(50)
2003 0.3 0.15 3(4)(6) 0.8 38(50)
2004 0.4 0.20 3(4)(6) 1.0 38(50)
2005 0.5 0.25 3(4)(6) 1.2 38(50)
2006 0.6 0.30 3(4)(6) 1.4 38(50)
2007 0.7 0.35 3(4)(6) 1.6 38(50)
2008 0.8 0.40 3(4)(6) 1.8 38(50)
2009 0.9 0.45 3(4)(6) 2.0 38(50)
2010 1.0 0.50 3(4)(6) 2.2 38(50)
*Special Size available upon request
